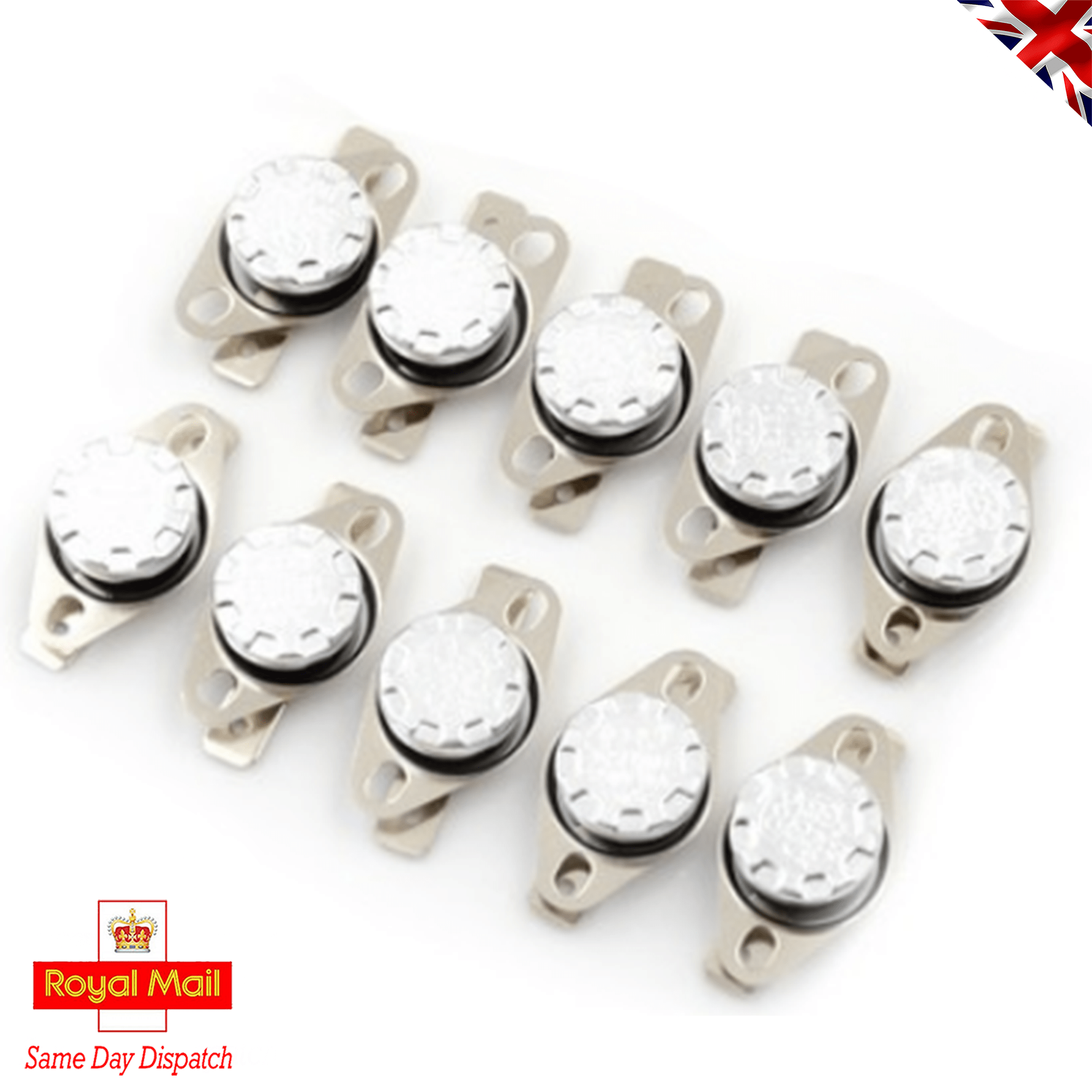

New 10 x Thermostat 85°C 185°F Thermal Switch KSD301 10A 250V
£12.50
New 10x Thermostat Thermal Switch KSD301
Thermostat 85°C 185°F Thermal Switch KSD301, designed for precise temperature control with a cut-off current rating of 10 amps. Ideal for various applications requiring temperature regulation of 85°C 185°F. Contact state: normally closed.
Manufacturer Part Number:
I031490
KDS301
Specifications
Brand: CQC
Model: KSD301
Maximum Current: 10A
Voltage Rating: 250V
IP Rating: IP40
✅ FREE UK Shipping ✅ 30 Day Returns ✅ Quality Assured ✅ UK Stocks ✅ Same Day 24 Dispatch
In stock
Description
New 10x Thermostat Thermal Switch KSD301
10 x Thermostat 85°C 185°F Thermal Switch KSD301 10A 250V
Manufacturer Part Number:
I031490
KDS301
Specifications
Brand: CQC
Model: KSD301
Maximum Current: 10A
Voltage Rating: 250V
IP Rating: IP40
Cut Off Temperature: 85°C
Minimum Operating Temperature (Actual): -20°C
Maximum Operating Temperature (Actual): 160°C
Termination Type: Push-Fit
Switch Action: Momentary
Cutout Shape: Circular
Number of Circuits: 1
Protection Against Liquids: Not Protected
Contact Form: Single Pole, Single Throw (SPST)
Contact State: Normally Closed
Contact Material: Copper, Iron
Lifespan: 100,000 Cycles
Standards/Compliance: RoHS | UL | ISO9001 | CE Panel
KSD301 Data Sheet Here
Our Full KSD Range Here
✅ FREE UK Shipping ✅ 30 Day Returns ✅ Quality Assured ✅ UK Stocks ✅ Same Day 24 Dispatch
Card Hotline 01482 420003
All Orders with cleared Payment will be Dispatched at 4pm each Day Monday-Friday.
Orders received after 4pm Weekdays will be Dispatched at 4pm the next Working Day.
Orders with cleared payment received before 10am Saturday will be Dispatched at 10.00am Saturday.
Orders Placed after 10am Saturday and on Sunday will be Dispatched the following Monday at 4pm.
Orders received on Public Holidays and Bank Holidays will be Dispatched next Working Day.
Additional information
| Weight | 60 g |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
